Hydrostatic weighing, also known as hydrodensitometry or underwater weighing, is a classic measure of body composition. The test involves the participant being lowered into a water tank until all body parts are submerged, expelling all the air from the lungs, then being weighed.

Hydrostatic Weighing test

Hydrostatic Weighing

How to Use This Calculator

Follow these steps to calculate your body fat percentage from hydrostatic weighing data:

  1. Enter Weight Measurements: Input your dry body weight (weighed on land) and your underwater weight (measured while fully submerged after exhaling).
  2. Set Water Temperature: Select the water temperature during testing. Standard range is 30-36°C. This affects water density calculations.
  3. Enter Residual Volume: Input your residual lung volume from spirometry testing. If not measured, typical values are 1.2-1.5 L for women and 1.5-2.0 L for men.
  4. Calculate: Click the Calculate button to see your body density and body fat percentage using both Siri and Brozek formulas.

Test Purpose and Equipment

Test purpose: The aim of underwater weighing is to measure the density of the body, and from that figure calculate percentage body fat.

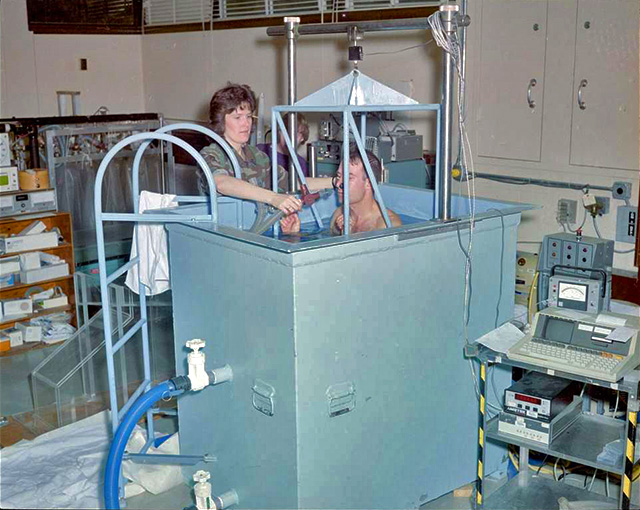

Equipment required: Hydrostatic stainless steel weighing tank, including underwater mounted chair and scale, weighted belt and nose clip. A more simple set up may include a chair and scale suspended from a diving board over a pool or hot tub.

Pre-test: Explain the test procedures to the subject. Perform screening of health risks and obtain informed consent. Prepare forms and record basic information such as age, height, body weight, gender. See more details of pre-test procedures.

Test Procedure

Procedure: The dry weight of the subject is first determined. The subject, in minimal clothing, then sits on a specialized seat, expels all the air from their lungs, and is lowered into the tank until all body parts are submerged. The person must remain motionless underwater while the underwater weight is recorded. This procedure is repeated several times to get a dependable underwater weight measure. See videos about Hydrostatic Weighing.

The Science Behind the Calculation

Body Density Formula

Body density is calculated using Archimedes' principle:

Body Density = Wa / (((Wa - Ww) / Dw) - (RV + GV))

Where:

  • Wa = body weight in air (kg)
  • Ww = body weight in water (kg)
  • Dw = density of water (varies with temperature)
  • RV = residual lung volume (liters)
  • GV = gastrointestinal volume (typically 0.1 L or 100cc)

Body Fat Percentage Formulas

The Siri equation (1956) converts body density to percent body fat:

Siri: % Body Fat = (4.95 / Density - 4.50) × 100

The Brozek equation (1963) provides an alternative calculation:

Brozek: % Body Fat = (4.57 / Density - 4.142) × 100

Residual Volume Estimation

For more accuracy, residual lung volume (RV) should be physically measured, though there are calculations for RV estimation. One estimation of residual volume is one third of forced vital capacity (FVC). See lung function tests.

This calculator uses validated equations from the literature:

Men: RV = 1.310 × Height(m) + 0.022 × Age - 1.232

Women: RV = 1.812 × Height(m) + 0.016 × Age - 2.003

These estimates are for adults aged 18-70 and have a standard deviation of about 0.4 liters.

Body Fat Classification for Athletes

Body fat percentage varies by sport, gender, and competition level. Use this table to interpret your results:

Category Men Women
Essential Fat 2-5% 10-13%
Athletes 6-13% 14-20%
Fitness 14-17% 21-24%
Average 18-24% 25-31%
Obese 25%+ 32%+

Sport-Specific Body Fat Standards

Different sports have varying optimal body fat ranges based on performance demands:

Sport Male Athletes Female Athletes
Bodybuilding (Competition) 3-8% 8-15%
Distance Running 5-10% 10-16%
Swimming 9-14% 14-22%
Wrestling/Combat Sports 5-10% 12-18%
Football (Skill Positions) 8-14% N/A
Football (Linemen) 15-25% N/A
Basketball 7-12% 16-24%
Cycling 6-11% 12-18%

Advantages and Disadvantages

Advantages: Underwater weighing is the most widely used test of body density and in the past was the criterion measure for other indirect measures. It has an accuracy of ±1.5% when residual volume is directly measured.

Disadvantages: The equipment required to do underwater weighing is expensive. The tanks are mostly located at university or other research institutions, and there is generally not easy access for the general population.

Validity: This method may underestimate body fat percentage of athletes as they tend to have denser bones and muscles than non-athletes, and may overestimate body fat percentage of elderly patients suffering from osteoporosis.

Comments: The water temperature is often elevated to provide a comfortable experience for the subject, however the density of water is dependent on the temperature and should be factored into the equation.

Factors Affecting Accuracy

Several factors can affect the accuracy of hydrostatic weighing results:

  • Residual Volume Estimation: Can introduce ±3-4% error if estimated rather than directly measured
  • Incomplete Air Expulsion: Each 100ml of trapped air can shift body fat readings by approximately 1.5%
  • Food and Carbonated Beverages: Can affect body density measurements if consumed shortly before testing
  • Hydration Status: Fluid loss during intensive exercise affects results
  • Menstrual Cycle: Fluid retention can affect body density in female athletes
  • Athlete Populations: Denser bones and muscles may lead to underestimation of body fat

Frequently Asked Questions

How accurate is hydrostatic weighing for measuring body fat?

Hydrostatic weighing has an accuracy of ±1.5-2.8% for body fat percentage when performed correctly. This makes it one of the most accurate methods available outside of medical imaging. The University of New Mexico Exercise Physiology Lab reports accuracy within ±1.5% error when residual volume is directly measured rather than estimated.

What is a good body fat percentage for athletes?

Body fat percentage varies significantly by sport and gender. Male athletes typically range from 6-13% body fat, while female athletes range from 14-20%. Elite endurance athletes often have lower percentages (5-10% for men, 10-16% for women), while strength athletes may have higher levels depending on their sport and position.

Why do I need to exhale completely during underwater weighing?

Air in your lungs increases buoyancy and makes you lighter underwater, which would overestimate your body fat percentage. Complete exhalation ensures only residual volume (air that cannot be expelled) affects the measurement. The residual volume is then accounted for in the calculation formula.

How does hydrostatic weighing compare to DEXA scans?

Both methods are highly accurate, but DEXA scans provide additional information including bone density, regional fat distribution, and visceral fat measurements. Hydrostatic weighing only provides total body fat percentage. DEXA has become the preferred method in many settings due to its additional data and greater convenience, though hydrostatic weighing remains the historical gold standard.

What is the difference between the Siri and Brozek formulas?

Both formulas convert body density to body fat percentage but use slightly different constants. The Siri formula (1956) is: %BF = (4.95/Density - 4.50) × 100. The Brozek formula (1963) is: %BF = (4.57/Density - 4.142) × 100. Results are typically within 1% of each other. The Siri equation is more commonly used in the United States.

How often should athletes measure body fat with hydrostatic weighing?

For training monitoring, athletes typically measure body composition at baseline (start of training year), end of each training block (every 4-8 weeks), and before competition. More frequent measurements may be useful during weight-making periods for combat sports or weight-class events. Consistency in testing conditions is more important than frequency.

Can hydrostatic weighing be inaccurate for certain populations?

Yes, the method assumes constant densities for fat-free mass components (bone, muscle, water), which can vary among populations. Athletes with denser bones and muscles may have body fat underestimated. Elderly individuals with osteoporosis may have body fat overestimated. Children and adolescents require different equations due to developing bone density.

References

  1. Siri, W.E. (1956). "The gross composition of the body." Advances in Biological and Medical Physics, 4, 239-280.
  2. Brozek, J., Grande, F., Anderson, J.T., & Keys, A. (1963). "Densitometric analysis of body composition: Revision of some quantitative assumptions." Annals of the New York Academy of Sciences, 110, 113-140.
  3. Behnke, A.R., Feen, B.G., & Welham, W.C. (1942). "The specific gravity of healthy men." Journal of the American Medical Association, 118(7), 495-498.
  4. Fleck, S.J. (1983). "Body composition of elite American athletes." American Journal of Sports Medicine, 11(6), 398-403.
  5. Heyward, V.H., & Stolarczyk, L.M. (1996). Applied Body Composition Assessment. Human Kinetics.
  6. Katch, F., Michael, E.D., & Horvath, S.M. (1967). "Estimation of body volume by underwater weighing: Description of a simple method." Journal of Applied Physiology, 23(5), 811-813.
  7. Ellis, K.J. (2000). "Human body composition: In vivo methods." Physiological Reviews, 80(2), 649-680.
  8. McArdle, W.D., Katch, F.I., & Katch, V.L. (2015). Exercise Physiology: Nutrition, Energy, and Human Performance (8th ed.). Lippincott Williams & Wilkins.
